Troubleshooting: POS Printer issue in Funan Studio

Introduction

This article serves as a guide for troubleshooting issues when the Receipt printer can't print receipt.

Step 1:
Check the printer.
It's power ON and switch OFF ? If No, switch on the printer and proceed to next step.

Step 2:
Check the iPad WIFI connection.

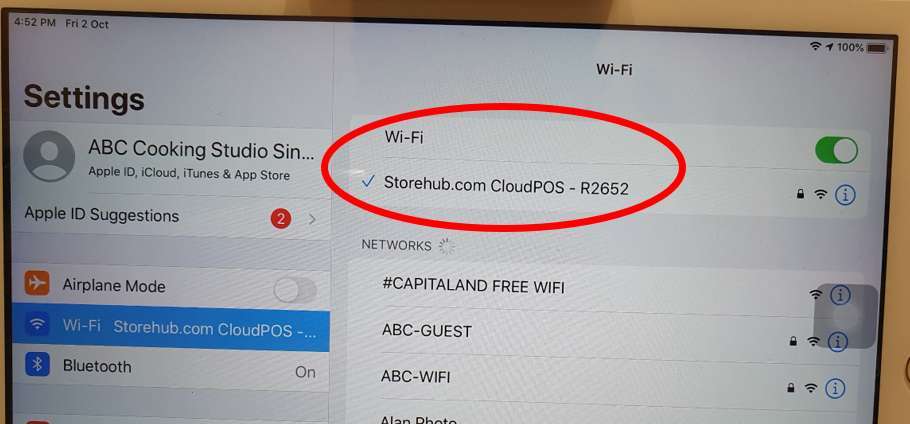

On the iPad, navigate to Settings > WIFI. Make sure is connected to “Storehub.com CloudPOS - R2652” WiFi. (Password:  ilovestorehub ). If cannot find "Storehub.com CloudPOS - R2652" WiFi name please proceed to Step 3. If YES, please proceed to Step 4




Step 3:

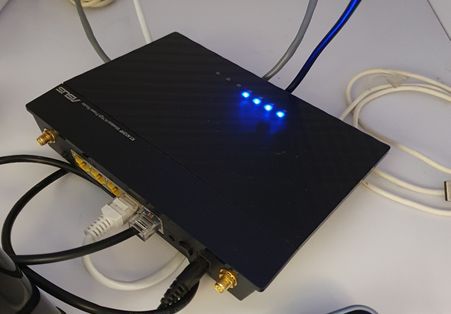

Check the Asus router.

Make Sure Asus router is power ON and Switch ON. After the router is switch on, Go to Step 2 to continue troubleshoot.




Step 4:
Quit the StoreHub Apps from iPad.

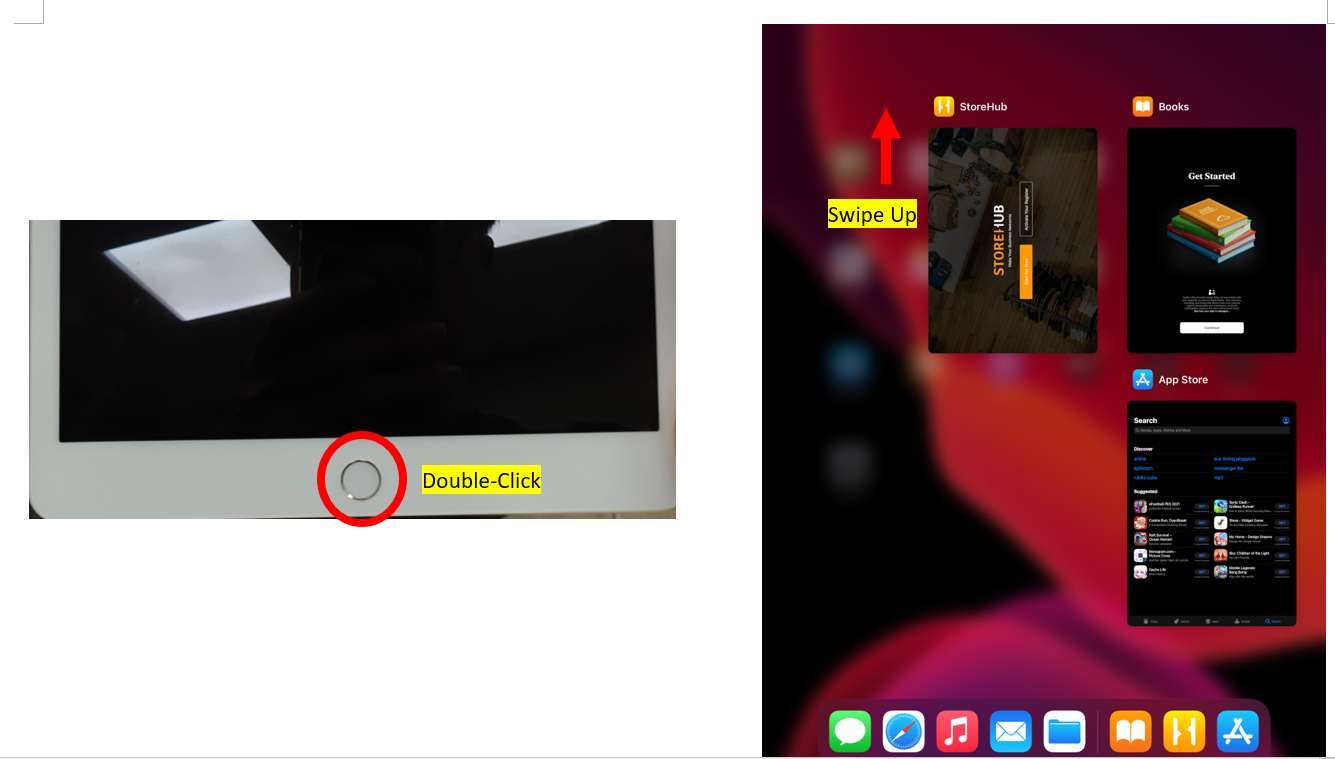

On the iPad, double-click the Home button to show your most recently used apps. Then swipe up on the Storehub's App to qui it.



Step 4:
Search the Printer.

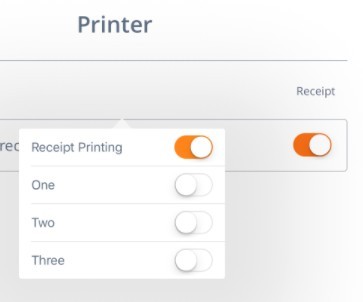

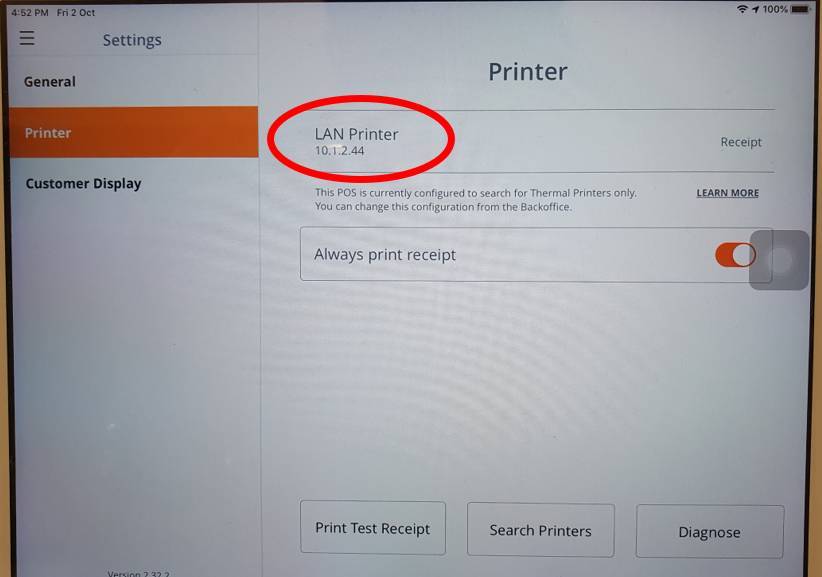

Open the StoreHub app by navigate to Settings > Printer. Tap Search Printers.  Select LAN Printer : 10.1.2.44 and set to Receipt Printing to enable.




Step 5:
Test Print Receipt

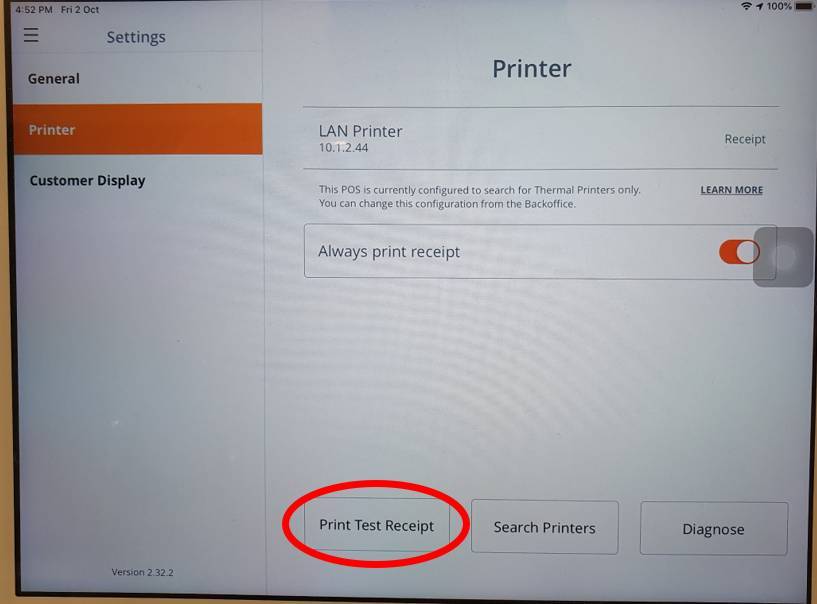

Click the Print Test Receipt  and the printer should print out a test receipt.



For further troubleshooting, please refer to Troubleshoot: Receipt Printer Feed Test
