Troubleshooting: Music Playing issue in Takashimaya Studio

Introduction

This article is to guide you on troubleshooting music playing issue when studio no music.

Troubleshooting Music Playing setting.


Step 1:
Check the Bluetooth Setting

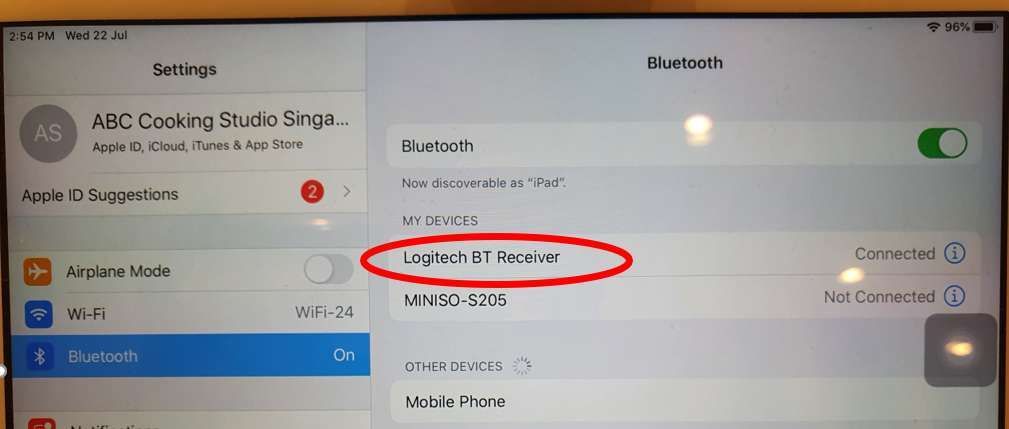

  • Navigate to iPad Bluetooth Setting by Settings > Bluetooth. Make sure the Bluetooth is ON and connected to “Logitech BT Receiver”.
  • If NO connect or can't find  “Logitech BT Receiver” Bluetooth name, proceed to Step 2. If YES, proceed to Step 3.


Step 2:

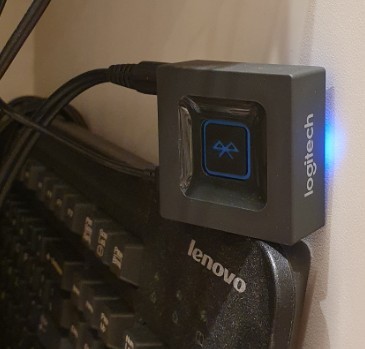

Restart the Logitech Audio Bluetooth device

  • Restart the Logitech Audio Bluetooth device located in the AV Cupboard behind the Reception Counter. The go back STEP 1 to continue troubleshoot.


Step 3:
Check iPad Sound Volume Setting

  • Check the sound volume on iPad, make sure is not in mute and try to adjust the sound volume to higher.

Additional Troubleshooting Action: Check the Volume Control console setting.

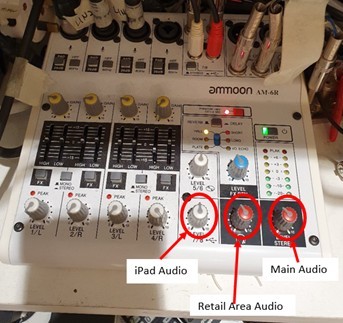

  • Check the volume control console located on the AV cupboard behind the reception counter, the volume of music playing must adjusted as picture below.
